For high speed applications up to 45,000 rpm including light deburring of cast pieces, bright cutting in jewelry making and fine detailing in wood. Dual Voltage unit 115/230V. Kit includes control box, handpiece with 3/32" collet, variable speed foot control, spare pair of motor brushes, spare fuse and collet changing wrench.
Compared to flexible shaft machines, micromotors have less torque, however, their higher speed results in a comparable rate of material removal with a lighter touch. The simple cord connection between the handpiece motor and control box is another key advantage. Unlike the "drag" and general restriction in movement that you have with a shaft and sheath, micromotors offer much greater freedom of movement with no vibration.

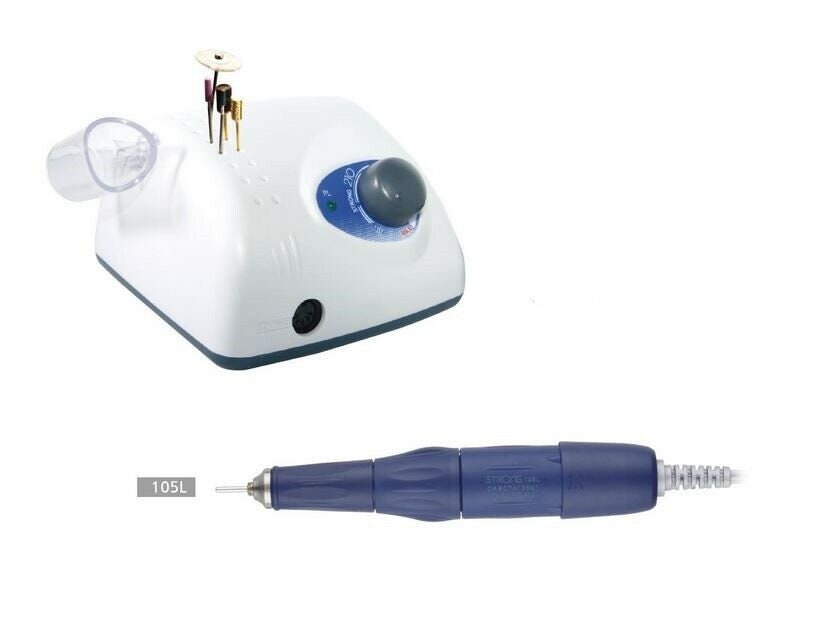

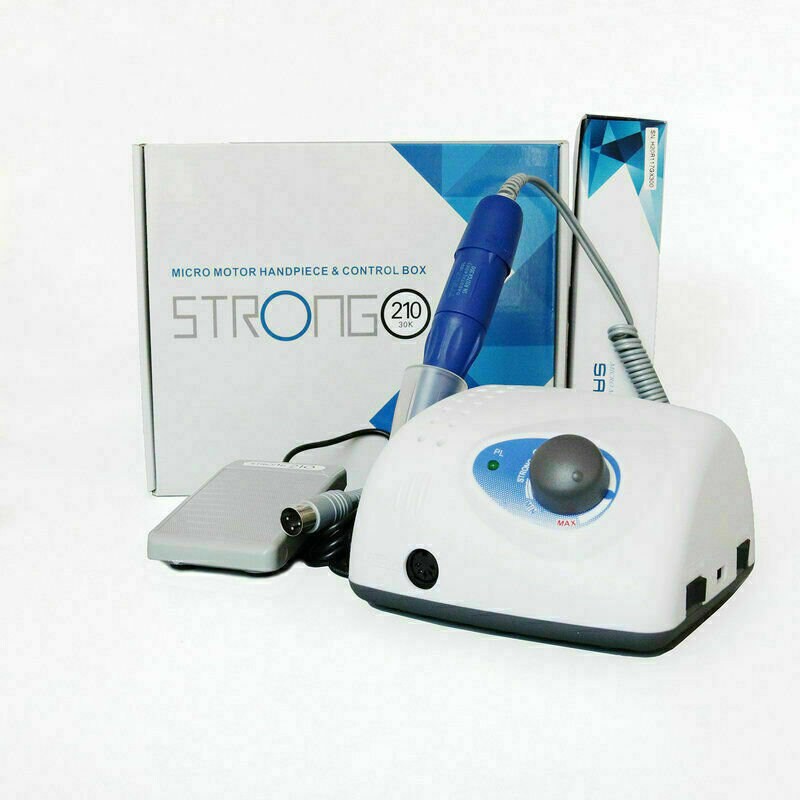

Included with the Strong 210 Micromotor:
Control Box
Handpiece with 3/32" (2.35mm) Collet
ON/OFF Foot Control
Control Box is compact with switches on the front for On/Off Power, Forward or Reverse Rotation, and on/off speed control food pedal. Speed can be adjusted from low to full speed using the dial on the box or with the foot pedal. An Overload Protector Light is also featured that turns red and sounds a beeping alarm when the motor stalls.
The back of the control box has a convenient Voltage Selector switch for operating with either 115 or 230 Volt operation. The control converts AC current to DC current required for
High Speed Rotary Handpiece has a slender, contoured grip for precise and very high speed work and quick release rotary type chuck. It has a fan cooled, brush-type continuous duty motor that runs cool and vibration free with permanently lubricated, shielded ball bearings that require no lubrication. It comes with a 2.35mm (3/32") collet that is easy to install and change with supplied collet changing wrench.
Bur changes are quick and easy with a simple twist of the front section of the Handpiece.

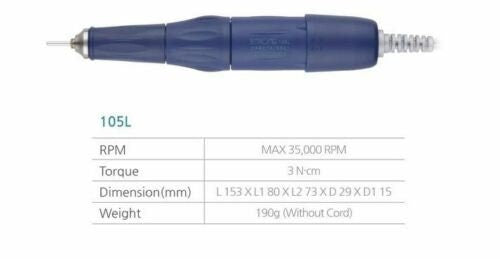

Handpiece specifications: Listed in pictures about.
One Year Manufacturer's Warranty
Made in Korea
