The ultimate micromotor kit for almost every job. Includes both rotary and hammer handpieces. 110 or 220 volt.

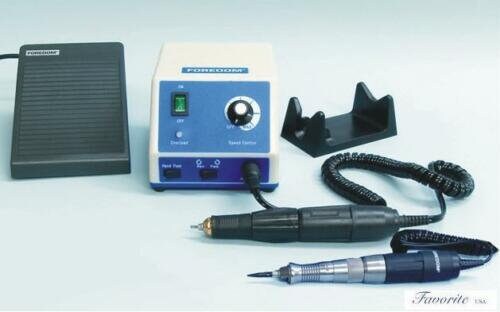

Kit K.1090 Includes:
1. Complete contents of K.1070 rotary kit starting with the Control- HP4-917. Has voltage selector switch for operating in either 110/120 or 220/240 volt. This is the same control unit that comes in Micromotor Kits K.1020, K.1070 and K.1080.

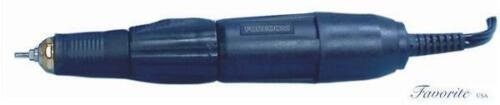

2. H.MH-170 Rotary Handpiece with 2.35mm (3/32") collet
The H.MH-170 High Speed Rotary Handpiece has a slender, contoured grip for precise and very high speed work (up to 38,000 rpm) and quick release rotary type chuck. It has a fan cooled, brush-type continuous duty motor that runs cool and vibration free with permanently lubricated, shielded ball bearings that require no lubrication.
It comes with a 2.35mm (3/32") collet that is easy to install and change with supplied collet changing wrench. Optional 1/8" collet are available separately. Bur changes are quick and easy with a simple twist of the front section of the Handpiece. A selection of collet adapters is available for simplifying changes between accessories with different shank sizes.
Comes supplied in Kits K.1070 and K.1090. Also works with the same HP4-917 Control Unit that comes with Micromotor Kits K.1020 and K.1080.
Specifications:
6.2" overall length, 5/8" grip diameter, 1" motor diameter, 7.3 oz./208 gr., DC30V/1.2A. C

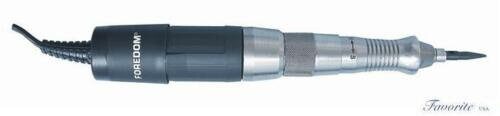

3. HPMH-011 Reciprocating Handpiece with up to 2,500 SPM's
Foredom HPMH-011 Handpiece, Hammer. Hammer handpiece for stone setting and engraving. Comes in Kit K.1080.
This reciprocating handpiece has a slender, contoured grip and impact adjusting ring for precise hammering work. It operates from 0-5,000 strokes per minute. The force of the impact of this reciprocating handpiece can be adjusted from light to full by turning the metal ring while the motor is off or running. The speed of the hammer action can also be varied from 0-5,000 strokes per minute with the manual dial on the control box, or the optional foot pedal. Used with the Graver Holder, the MH-011 handpiece becomes a precision power engraver, without the need for an air compressor or a flexible shaft drive.
Specifications:
6-1/4" overal length, 9/16" grip dia., 1" motor dia., 13 oz/369 gr., 1.5 amps (115v), .75 amps (230v). CE marked.
Comes supplied in Kits K.1080 and K.1090. Also works with the same HP4-917 Control Unit that comes with Micromotor Kit K.1020.

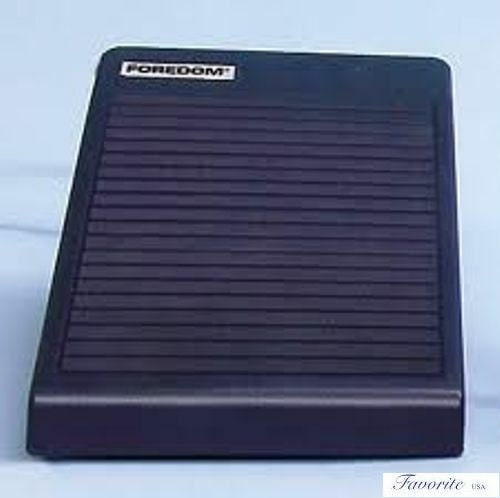

4. HP4-960 Variable Speed Foot Control
Foredom HP4-960 Variable Speed Foot Control. Replacement foot control for Kits K.1020, K.1070, K.1080 and K.1090.
This variable speed foot control comes supplied in micromotor kits K.1020, K.1070, K.1080 and K.1090. Offered here for replacement. Works with control box HP4-917 to vary speed from low to full up to 38,000 RPM.
5. HP4-933 Handpiece Cradle

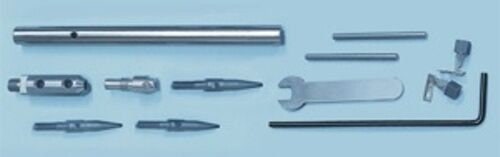

6. All accessories that come with HPMH-011 including Graver Holder
7. Spare motor brushes, spare fuse, collet changing wrenches
CE marked.
One Year Manufacturer Limited Warranty.
Made in USA
