P-DP30 is a rugged and precise stand which converts your Foredom flexible shaft power tool into a drill press by securely holding a handpiece in a vertical position for drilling straight, accurate holes to specified depths. The sturdy, all metal stand is fully adjustable, has a 2" throat capacity, and a stroke length up to 1-1/4". The work table moves up and down on the post or can swing away for drilling large pieces.
Foredom's drill presses are designed for use with Handpiece H.30, H.30H, H.44, H.44T and H.44HT. They can be matched with any Foredom motor, but are especially suited to the Series LX motor for high torque/slow speed applications like stone setting and wax modeling. They also work great with Series SR reversible motor which permits drilling into the workpiece (such as a pearl or bead) in the forward rotation and then out when switched into reverse rotation without increasing the size of the drilled hole.
Foredom drill presses are also ideal for modeling, spot-facing, countersinking and reaming in wood, wax, plastic, metal, glass and gemstone.

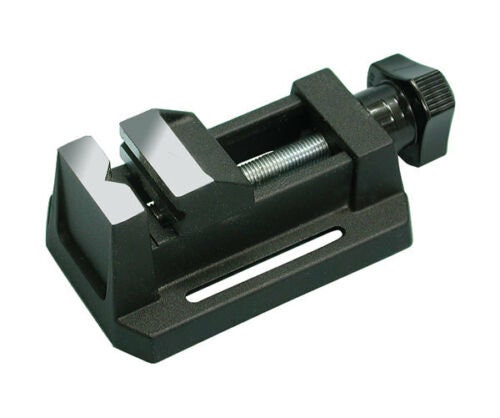

This FOREDOM® miniature vise is perfectly made for grasping and firmly holding small pieces for drilling, grinding, cutting and many other operations.
Made of zinc die cast this mini vise firmly grasps small workpieces for precision drilling on the table top. It has perfectly machined horizontal and vertical "v" grooves for holding small round pieces, and slots.
In the base there are slots for mounting this vise with bolts to drill press table slots.
Dimensions:
4-1/4" long x 2-3/8 wide x 1-1/2" high
Jaw width: 1-1/4"
Jaw capacity: 1-1/2"
Jaw height: 1/2"
Mounting slots: 11/64" wide x 1-7/8" long
Accepts #8 screws
Mounting Hardware Included:
2 each of bolts, washers and wing nuts. The 7/8" long bolts can be tightened with a screwdriver
