Take it on the go, this pocket size micro motor by Foredom® with adjustable speeds up to 30,000 rpm. It offers users freedom of movement, especially when working at multiple stations or for outdoor craft and jewelry fairs where power is unavailable.
Control unit with built-in rechargeable Li-ion battery features a digital RPM display at the top that makes it easy to monitor speed as you work. The dial on the front adjusts speed from 0 30,000 RPM.
* Run time is approximately 5 hours, depending on how long the micromotor is in continuous use when in battery mode, or plug it in for day-long use. Battery charge time is 3 hours.
* Perfect for users who work at multiple stations, or for signing/personalizing work pieces at craft and outdoor fairs when no power is available.
* Handpiece (motor) is small and lightweight but has plenty of power for fine detailing, polishing and even grinding on metal, wood, glass and many other materials. Its fan cooled, brush type continuous duty motor runs cool and vibration-free. It has permanently lubricated, shielded ball bearings that require no additional lubrication.
* The handpiece has a twist release rotary type collet for easy changes. This unit is supplied with 2.35mm (3/32"). However 1/8" (3.125mm) or 3 mm collects can be supplied upon request or purchased separately.
* Collets can be installed and changed. Consider Collet Adapters, that step down collet sizes without having to switch out a collet, for handpieces with 1/8 collets.
Control unit with built-in rechargeable Li-ion battery features a digital RPM display at the top that makes it easy to monitor speed as you work. The dial on the front adjusts speed from 0 30,000 RPM.
* Run time is approximately 5 hours, depending on how long the micromotor is in continuous use when in battery mode, or plug it in for day-long use. Battery charge time is 3 hours.
* Perfect for users who work at multiple stations, or for signing/personalizing work pieces at craft and outdoor fairs when no power is available.
* Handpiece (motor) is small and lightweight but has plenty of power for fine detailing, polishing and even grinding on metal, wood, glass and many other materials. Its fan cooled, brush type continuous duty motor runs cool and vibration-free. It has permanently lubricated, shielded ball bearings that require no additional lubrication.
* The handpiece has a twist release rotary type collet for easy changes of 2.35mm (3/32) or 1/8 shank burs, depending on choice of collet installed.
* Collets can be installed and changed. Consider Collet Adapters, that step down collet sizes without having to switch out a collet, for handpieces with 1/8 collets.
Two Year Limited Warranty

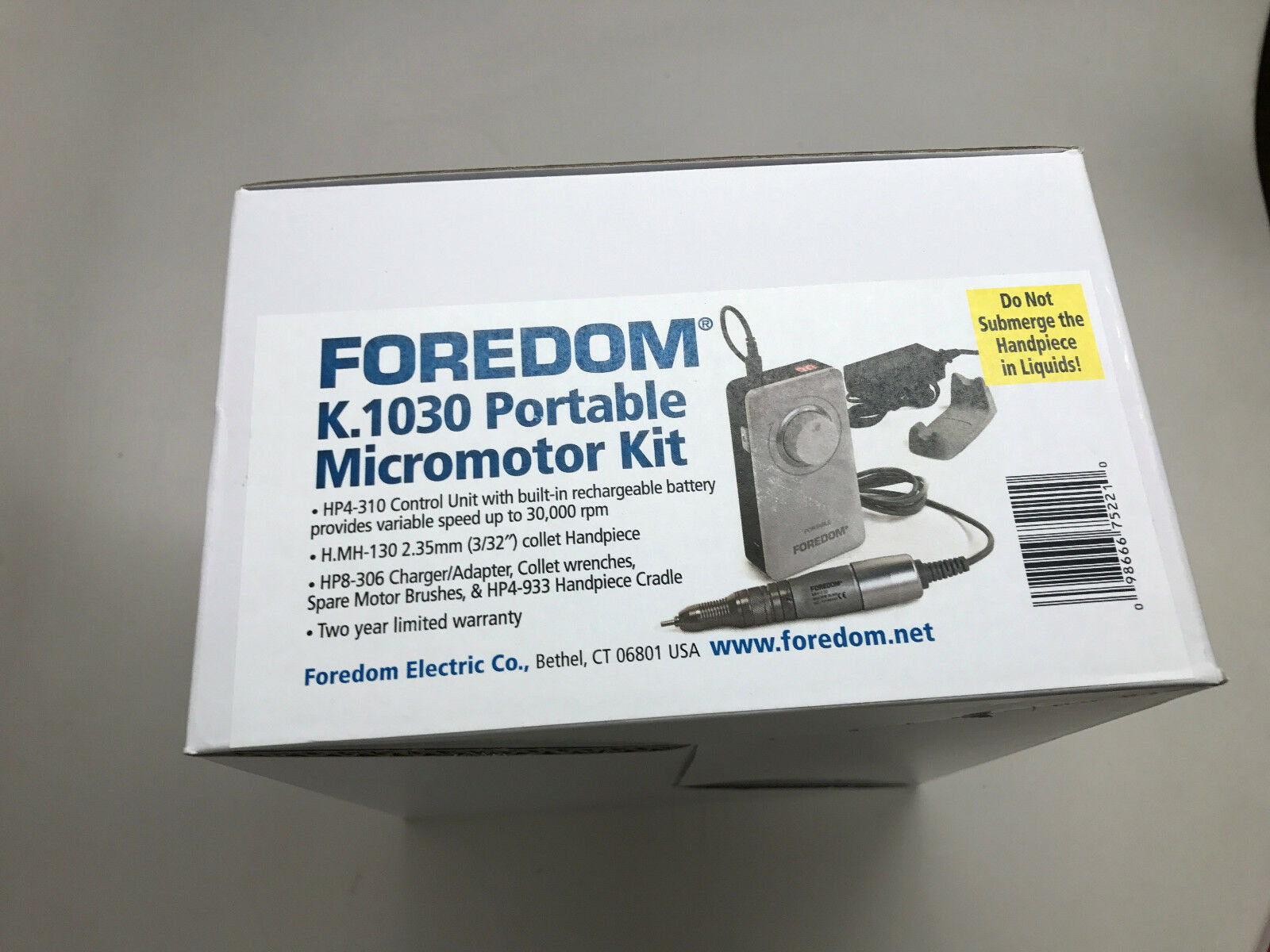

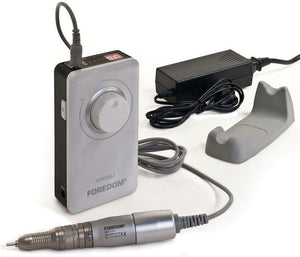

Kit includes:
HP4-310 Control Box
H.MH-130 with 2.35mm (3/32") collet installed or H.MH-13018 with 1/8" collet installed.
HP8-306 Charger/Adapter
HP4-933 Handpiece Cradle
HP8-163 Spare pair of motor brushes
Collet Changing Wrenches HP4-993
HP4-310 Control Unit with Built-in Rechargeable Battery
Specifications:2-34 Wide, 1-14 Deep, 5-14 Tall, 9.77 oz. Output: DC 12V/1.2A
Front: Speed Control Dial
Top: Handpiece Connector Port, 2-Digit RPM Display, LED Indicator Lights: Optional On/Off Foot Switch in use, Rotational Direction, Battery Charging, and Overload Protection Circuitry
Side Panels: On/Off Button, Adapter/Charger Connector Port, Forward/Reverse Button, Optional Foot Switch Connector Port, On/Off Foot Switch (Optional) Button
Handpiece (Motor)
Specifications: 5 Long, 1/2 Diameter at grip, 7/8 at motor, 6.46 oz/183g, Cord Length: 59DC12V/1.2A, 4.11 in.- oz or 29mNm or 25W Max Torque or Watt Output
The Handpiece is small and lightweight yet has plenty of power for fine detailing, polishing and even grinding on metal, wood, glass and many other materials. Its fan cooled, brush type continuous duty motor runs cool and vibration-free. It has permanently lubricated, shielded ball bearings that require no additional lubrication. The handpiece has a twist release rotary type collet for easy changes of 3/32 or 1/8 shank burs, depending on collet installed.
Tip:
Consider purchasing a separate "Collet Adapter" that fits inside the handpiece collet and allows the use of smaller shank size accessories without having to actually change the collet. We offer five sizes of adapters that fit in all of our micromotor handpieces except the hammer and chuck styles. See related products below.
HP8-B1800 Rechargeable Lithium Ion Battery:
Specifications: 14.8v 1,800mAh
Charging Time: 3 hours, Working Time: 5 hours
HP8-306 Charger/Adapter:
Specifications: Input: 110-240 Volt, 50/60hz, Output: DC18V/1.8A
110v OR 220v, Please specify in notes.
