GRS® TOOLS 005-895 GRAVERSMITH GRAVER SMITH WITH 901 HANDPIECE FOR ENGRAVING

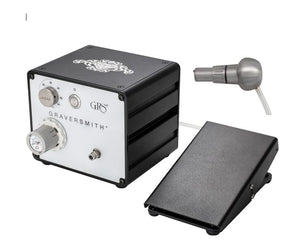

The lean design of the GraverSmith air system delivers essential functionality without sacrificing power or precision, making it ideal for production stone setters, multiple factory installations, and craftspeople on a budget. Its brushless DC motor and streamlined internal design ensure exceptional reliability, while precision-machined components provide the durability needed for years of dependable service. GraverSmith requires clean, oil-free compressed air to function.
Gravers sold separately.
The GraverSmith separates speed and power, offering optimal control for a variety of applications. It features a single standard handpiece connection. The redesigned larger foot pedal provides intuitive control and easier use. With its compact footprint, the system frees up valuable bench space.
Standard Handpieces | GRS Item #004-901
QC 901® Handpiece
This comfortable, compact shape has an adjustable side hose connection. It fits most engraving and stone setting needs, including micro-engraving, deep relief work, and bead raising / hammer setting. Made from fully heat-treated stainless steel. Handpiece works with standard foot control.
Top Features
Separation of speed and power for precise control
Ready for both hobby and repetitive production line use
Features
- Power on/off button
- Air pressure gauge
- Air pressure regulator knob
- Standard handpiece port
- Impact speed control (SPM)
- Air filter with Quick Connect fittings
- Rear connection for foot control
- 24 V power connector for worldwide use
Specifications
Dimensions
7.12" x 9.54" x 6.3"
Weight
8.3 lbs
In the Box
GraverSmith Air System
901 Handpiece
Foot Pedal
Air Filter
Power Cord
Air Filter
Power Cord
Pneumatic Air Requirements
Clean, oil-free compressed air with a minimum of 45 psi (3 bar) pressure and 1.4 cfm (40 liters per minute) flow
Air Regulators
1
Handpiece Port
1
Control Type
Foot Control
Voltage
100/220 V at 50/60 Hz
Gravers sold separately.
