GRS® TOOLS C-MAX CARBIDE RFF KNIFE POINT GRAVERS #30°, 45°, 60°, 75°, 90°, and 120°
Introducing the new C-Max Onglette for jewelry work, stone setting, and general engraving. The carbide material for C-Max gravers provides a superior edge to traditional tool metals. Try one today and see the difference for yourself.
Similar to a knife graver and the C-Max V-Points, the new C-Max RFF KNIFE Point Gravers are available in several geometries ranging from an ultra-narrow 30° to a wide 120°. The top is rounded to allow for maximum customization of relief angles while providing a comfortable surface. The sides are pre-shaped to reduce sharpening time for the cutting angles.
C-Max RFF KNIFE Point gravers use QC Tool Holder for 1/8" Round (#004-873).
Specifications:
Length: 1.8" (45.72 mm).
Shank diameter: 0.125" (3.175 mm).

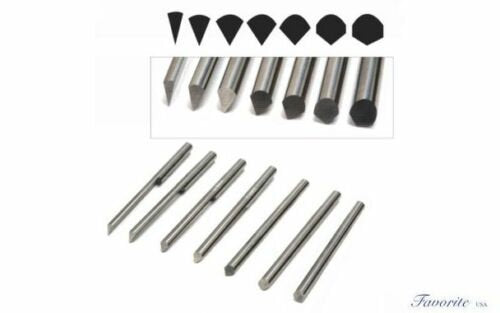

C-Max Carbide RFF KNIFE POINT Gravers are supplied in the following sizes:
GRS ITEM # Knife Point Angle Thickness

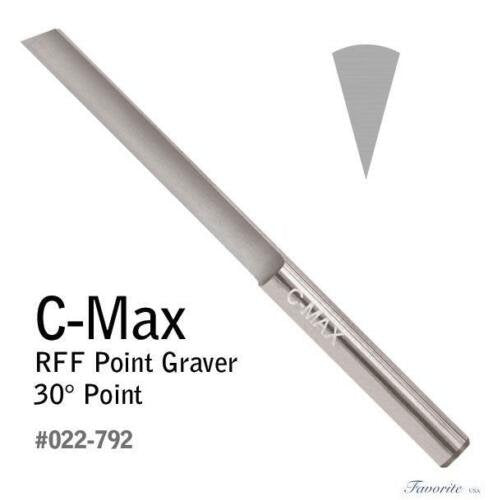

022-792 30° 1.0 mm

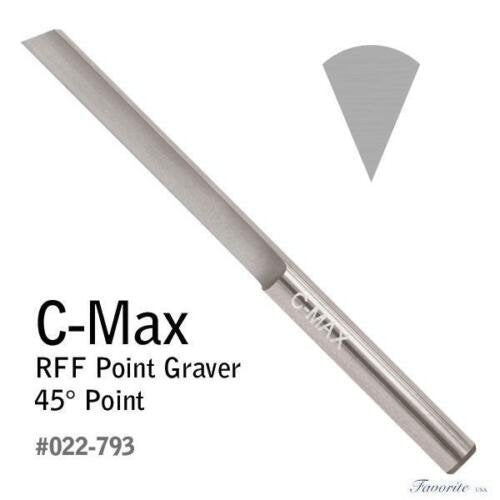

022-793 45° 1.2 mm

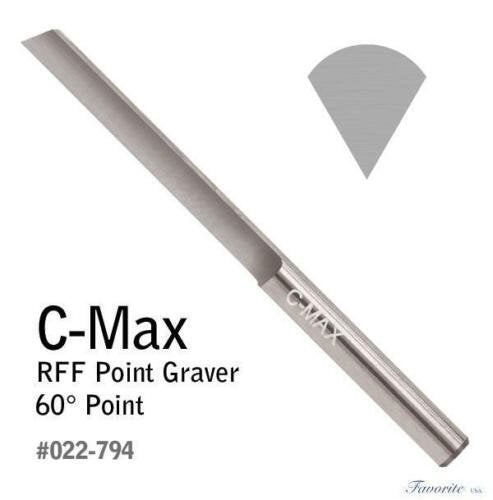

022-794 60° 1.4 mm

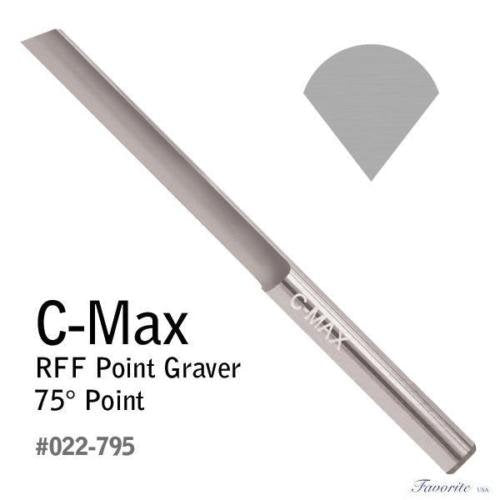

022-795 75° 1.6 mm

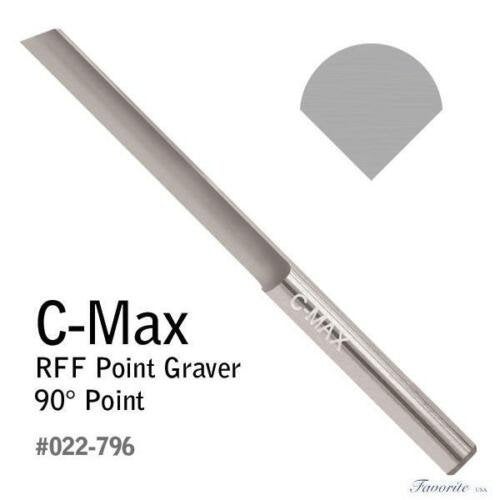

022-796 90° 1.8 mm

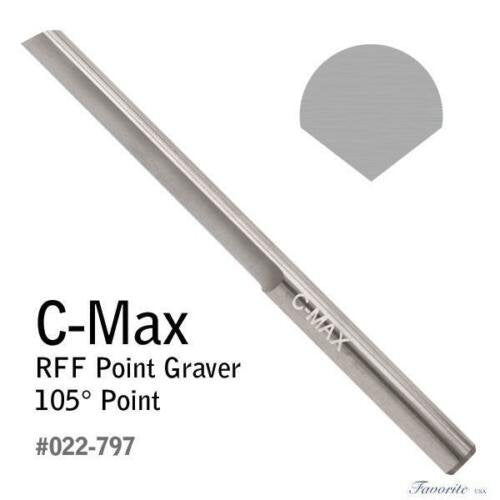

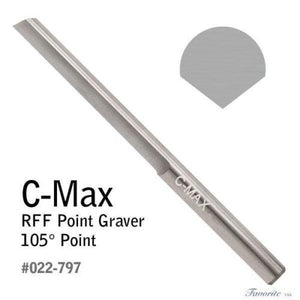

022-797 105° 2.0 mm

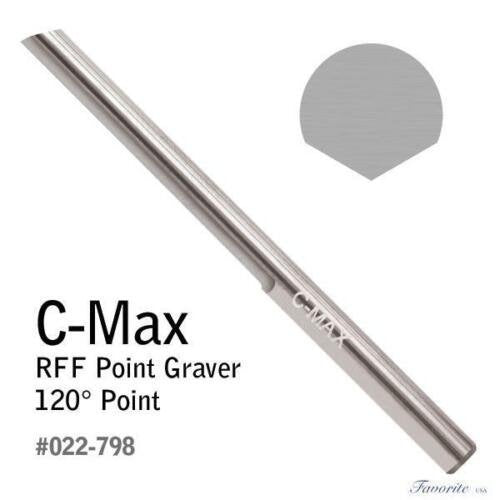

022-798 120° 2.2 mm
About C-Max
Years of development have now produced a tungsten carbide graver with the right blend of hardness and toughness for hand engraving and stone setting applications. C-Max achieves a metallurgical balance like no other carbide. For years, engravers and jewelers have used other carbide gravers that break easily or don’t hold a fine edge. Now, this frustration is gone forever, thanks to C-Max carbide. Try these tools and you’ll do better work in noticeably less time.
C-Max Onglette Gravers use QC Tool Holder for 1/8" Round (#004-873)
