NSK Emax EVOlution Standard Set With Ring Type Handpiece, 120V
The NSK (Nakanishi) Emax EVOlution EV410-IR Standard Set is the recommended starting configuration for the Emax EVOlution system, combining the NE249 120 controller, ENK-410S standard brushless motor, and IR-310 ring-type handpiece.
At 1,000–40,000 RPM with 4.3 cN·m torque, the ENK-410S covers the widest range of everyday precision grinding, engraving, polishing, and finishing tasks.
The modular design means every Emax EVOlution attachment — angle heads, lusters, belt sander, hammer head — plugs into this same motor and controller without additional hardware. Ring-type collet for wrench-free bur changes.
- Speed Range: 1,000–40,000 RPM
- Max Torque: 4.3 cN·m
- Motor Type: Brushless
- Collet: 1/8" (3.175mm) and 2.35mm: 1 pc each
- Power: AC120V, 50-60Hz

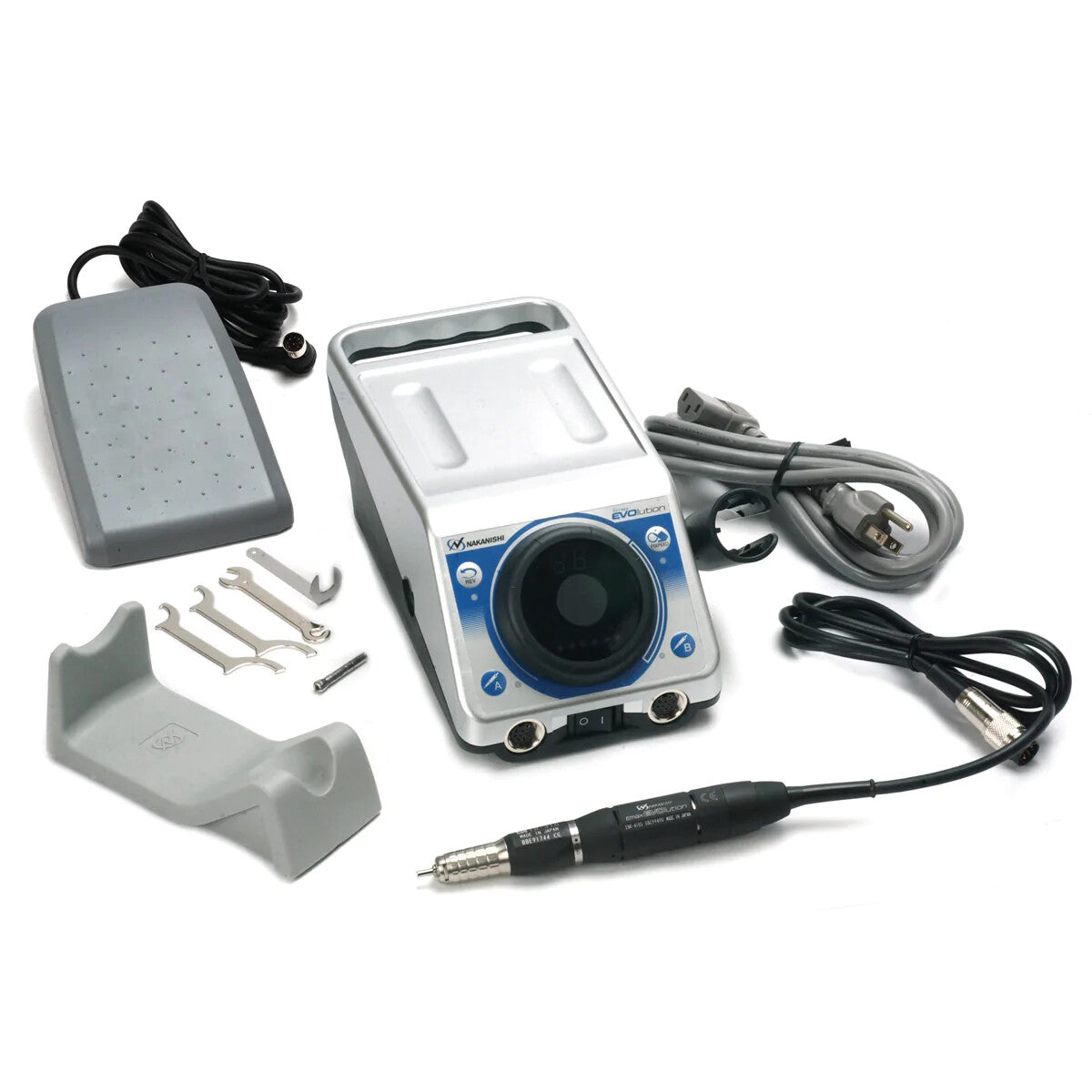

- Includes: NE249 120 Controller, ENK-410S Motor, IR-310 Handpiece, Collets (1/8", 3/32"), Wrenches, Stand
- Made in Japan
FEATURES:
- Compact and functional design makes the unit portable
- Soft touch switches permit easy operation and long service life
- NAKANISHI Smart Switch
- High performance samarium cobalt magnet
- High accuracy, lightweight, high reliability and superior durability
- Major reduction of RF noise
- Provides extremely quiet operation from low to high speed with step-less speed adjustment
