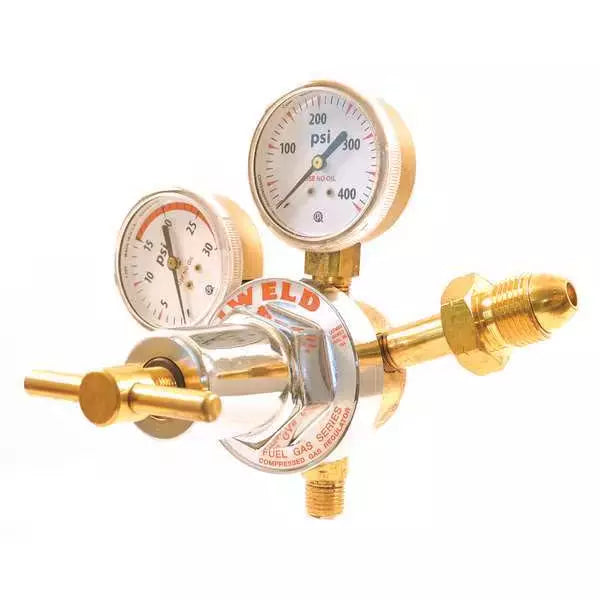

UNIWELD SINGLE STAGE ACETYLENE REGULATOR RUH 8211 - BRAND NEW!
Dimensions
| Gauge Size | 2 in |
| Overall Length | 9-7/16" |
| Hose Fitting Size | B |
| Gauge Diameter | 2 in |
| Inlet Connection Size | 0.880"-14 |
| Outlet Connection Size | 9/16"-18 |
Details
| Item | Stage Regulator |
| Gas Service | Acetylene |
| Stages | Single Stage |
| Regulator Application | General Purpose |
| Delivery Pressure Range | 2 to 15 psi |
| Inlet Connection | CGA 510 |
| Outlet Connection | 9/16"-18 M LH |
| Diaphragm Material | Neoprene |
| Standards | UL Listed |
| Application | General Purpose |
| Delivery | 2 to 15 psi |
| Regulator Supply Type | Cylinder |
| Includes | Easy-to-Read 2 in Gauge, Heavy Duty Mechanical Stem Type Seat and Nozzle Assembly, Polished Chrome Bonnet |
| Max. Inlet Pressure | 3,000 psi |
| Regulator Capacity | Medium Duty |
| Supply Pressure Gauge | 400 psi |
| Gauges Delivery Pressure | 30 psi |
| Body Material | Polished Brass |
| Series | RUH |
| Features | Delrin Bushing for Smooth Flow Adjustment, Fine Mesh Filter Screen Between Inlet and Seat, Porous Metal Inlet Filter (Except CO2 Models), Pressure Relief Device for Low Pressure Gauge Protection Only |
| Duty Rating | Heavy Duty |
| Maximum Gauge Outlet Pressure | 400 psig |
| Inlet Pressure (Maximum) | 3,000 psig |
| Outlet Connection Gender | Male |
| Outlet Pressure (Minimum) | 2 psig |
| Outlet Thread Direction | Left Hand |
| Inlet Connection Type | NGO |
| Inlet Thread Direction | Left Hand |
| CGA Number | CGA 510 |
| Number of Stages | Single Stage |
| Regulator Series | RUH82 |
| Inlet Connection Gender | Female |
| Outlet Pressure (Maximum) | 15 psig |
| Bonnet Material | Polished Chrome |
| Control Type | T-Handle |
| Outlet Connection Type | UNF |
| Body Finish | Polished |
| Compatible Gas Type | Acetylene |
Stage Regulator, Maximum Gauge Outlet Pressure 400 psig, Number of Stages Single Stage, Compatible Gas Type Acetylene, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Female, Inlet Connection Size 0.880 In.-14, Outlet Pressure (Maximum) 15 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Body Finish Polished, Diaphragm Material Neoprene, CGA Number CGA 510, Hose Fitting Size B
Manufactured in USA
